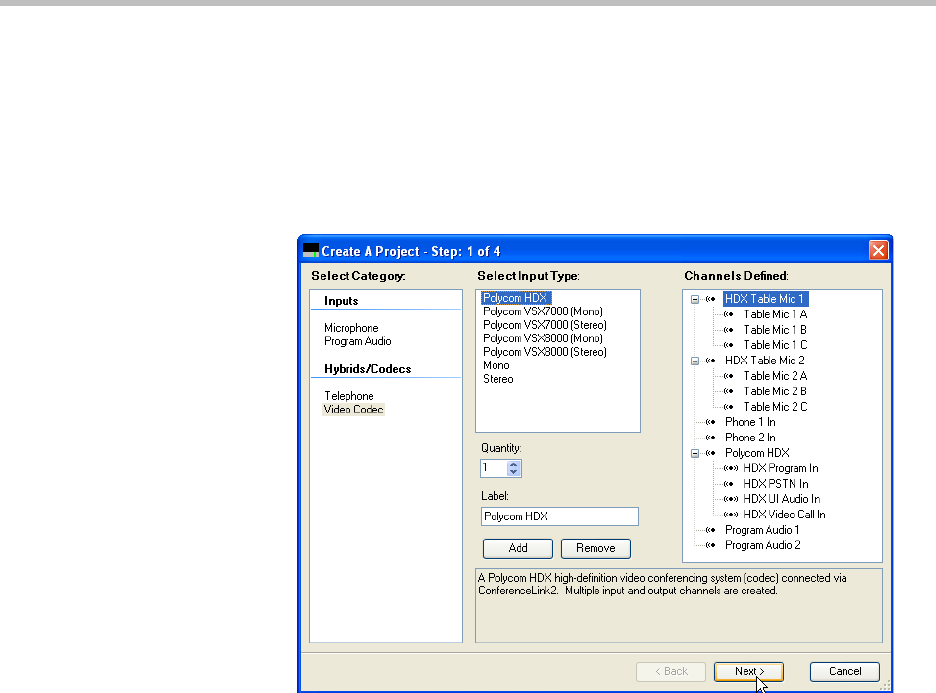

SoundStructure Studio Steps
Step 1 - Select Inputs
The system should be designed in the combined mode with two HDX table
microphones, two program audio source, two telephone lines, and a Polycom
HDX system.
