Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
9 - 18

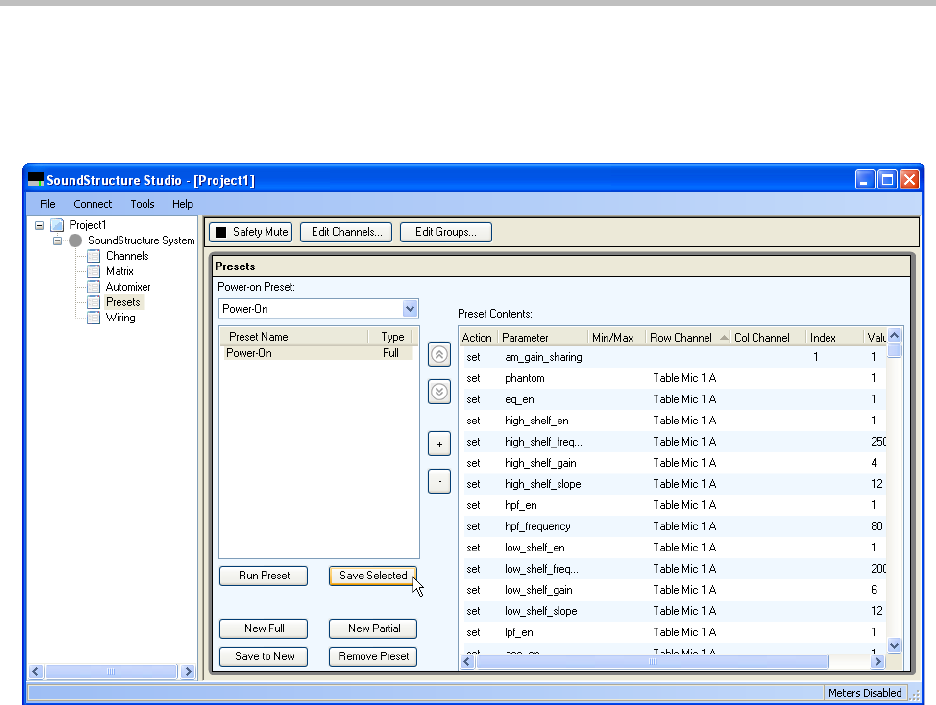

After this output gain change, and any other changes that are made to the file,
the next step is to save the settings to the power on preset as shown on the pre-
sets page and in the following figure to ensure all changes are stored
permanently inside the system.
Wiring Information
The system should be wired according to the layout on the wiring page as
shown in the following figure. To wire the system with virtual channels on dif-
ferent physical inputs or outputs, simply drag the channels to their desired
locations and then wire the system according to the updated wiring informa-
- Design Guide 1
