Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
9 - 52
Wiring Information

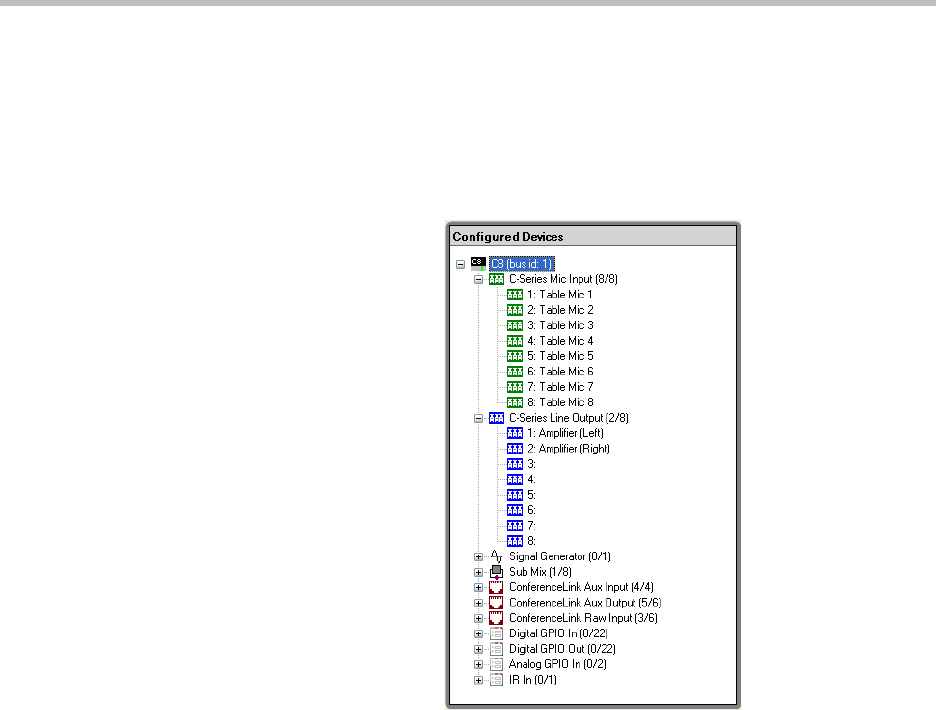

The system should be wired according to the layout on the wiring page as
shown in the following figure. To wire the system with virtual channels on
other physical inputs or outputs, simply drag the channels to their desired
locations and then wire the system according to the updated wiring
information.
Controlling The System
A control system will typically be used to mute microphones and volume set-
tings. The following sections describe how this may be done with the
command syntax of the SoundStructure devices. See Appendix A - Command
Protocol Reference Guide for additional information on the command set.
Mute
The microphones in the system may be muted either individually or as the
“Mics” group by sending the following API command to the SoundStructure
device:
set mute “Mics” 1
will mute all the microphones in the system and
set mute “Mics” 0
will unmute the microphones in the system.
