Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
8 - 2
Dynamic IP Addresses
By default, the SoundStructure device accepts an IP address from a DHCP
server. Once assigned, IP addresses can be determined with the SoundStruc-
ture Studio software via the SoundStructure device discovery method. To

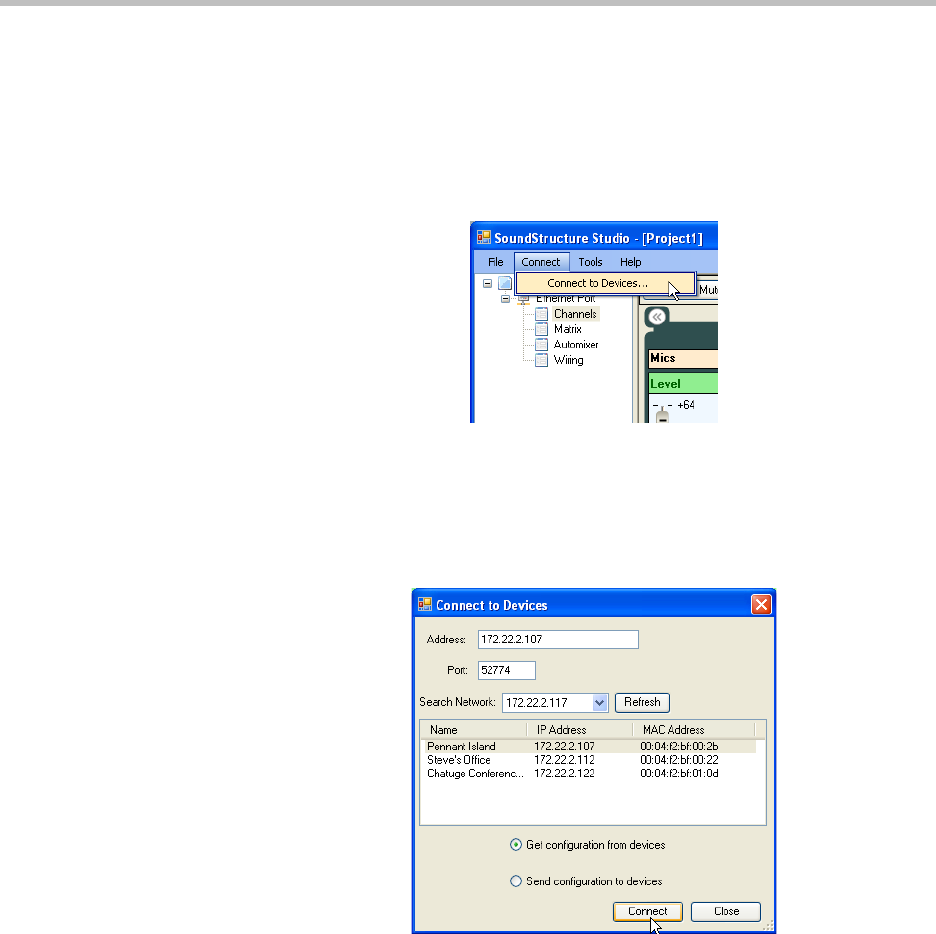

determine the IP address, connect to the device using the Connect to Devices
option as shown in the following figure.
SoundStructure Studio will display a list of systems found on the network
interface specified by the Search Network option. The SoundStructure sys-
tems that are found will be shown with their system name, IP addresses, and
MAC addresses as shown in the following figure.
