Customizing SoundStructure Designs
5 - 21

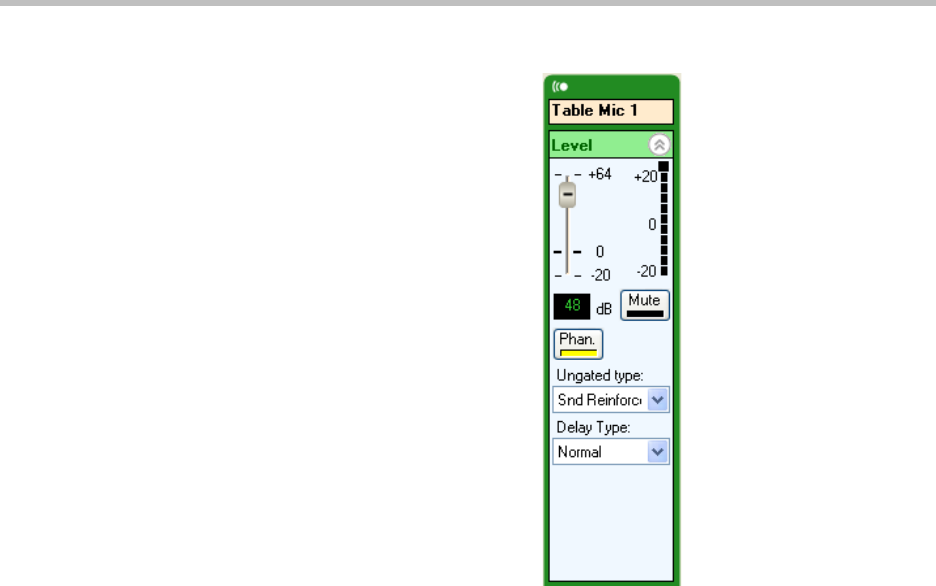

button which is labeled Phan.
Ungated Type
The ungated type user control refers to which signal path to use for the
ungated (or un-automixed) processing path. The decision of whether to use
the ungated version of the input channel processing is made at the matrix cros-
spoint as shown in the following figure where the gated type None is
highlighted.
Once the ungated signal is selected in the matrix, the decision of which
ungated type of the signal is used is made on the channels page on an input by
