Advanced Applications
9 - 3

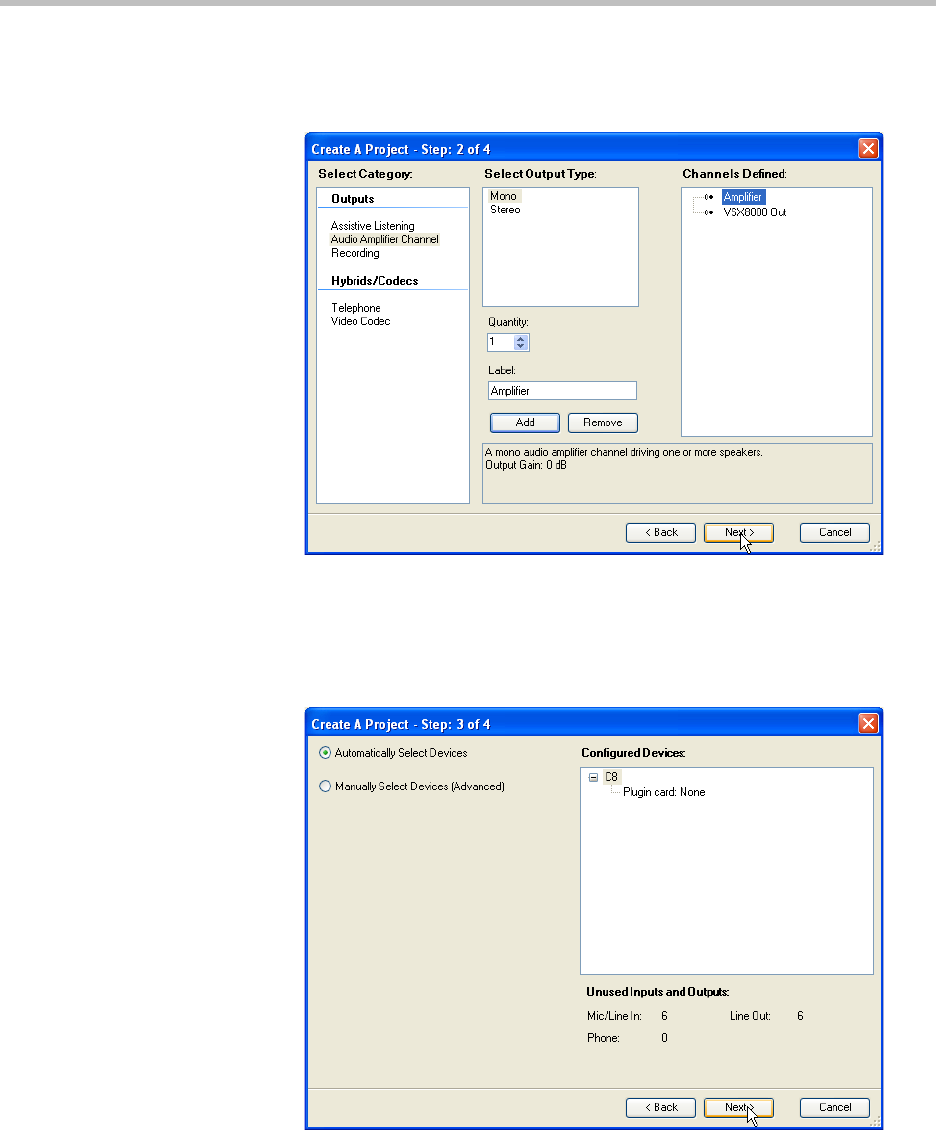

Step 2 - Select Outputs
For the second step, select a mono amplifier as the output source. The VSX8000
output is automatically defined when the VSX8000 input is selected.
Step 3 - Select Equipment
Select the equipment required to create this design. By default a SoundStruc-
ture C8 is selected.
