Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
7 - 26

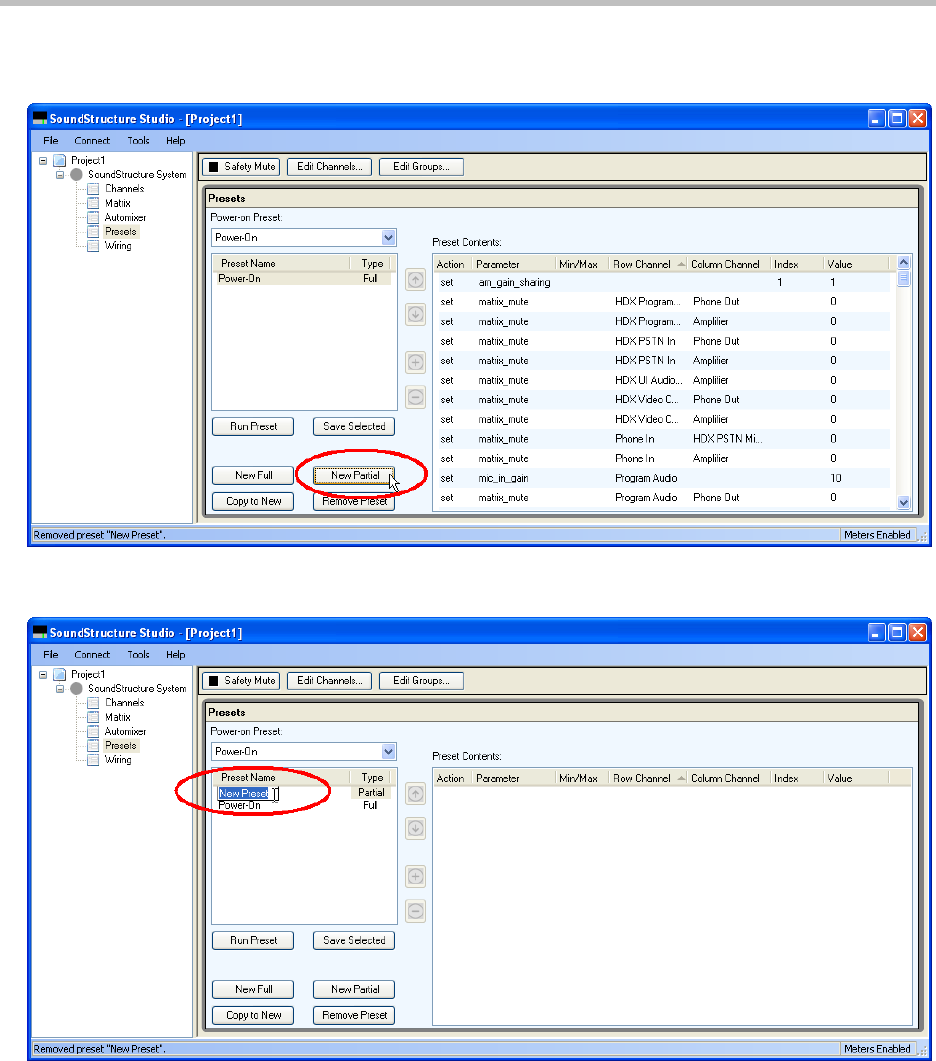

New partial presets may be created by selecting ‘New Partial’ as shown in the
following figure.
The next step is to enter a name for the partial preset as shown in the following
figure.
