Customizing SoundStructure Designs
5 - 29
enabled.

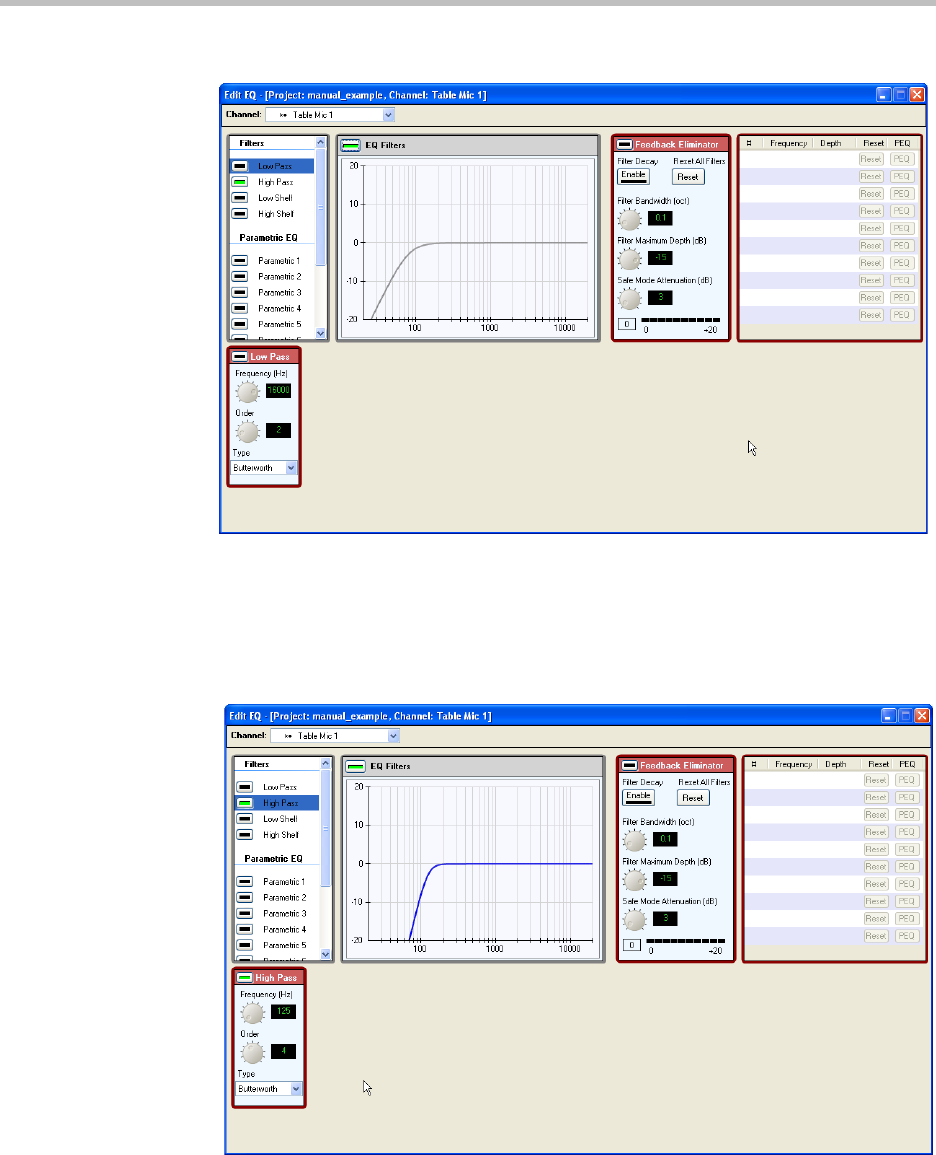

To enable a filter, click the button next to the filter, and then adjust the param-
eters for the filter block as shown in the following figure.
The cut off frequency of the Low Pass and High Pass filters can be adjusted
between 0 Hz and 20,000 Hz, the order can be adjusted from 2
nd
to 8
th
, and
either a Butterworth or Linkwitz-Riley filter may be selected.
For the parametric EQ filters, the designer can choose from:
• Parametric filter
