Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
9 - 2
Before proceeding with the design, install SoundStructure Studio software
from the CD-ROM supplied with your SoundStructure device or download
the latest version from the Polycom website. Launch the SoundStructure
Studio software and select New Project from the File menu.
SoundStructure Studio Steps

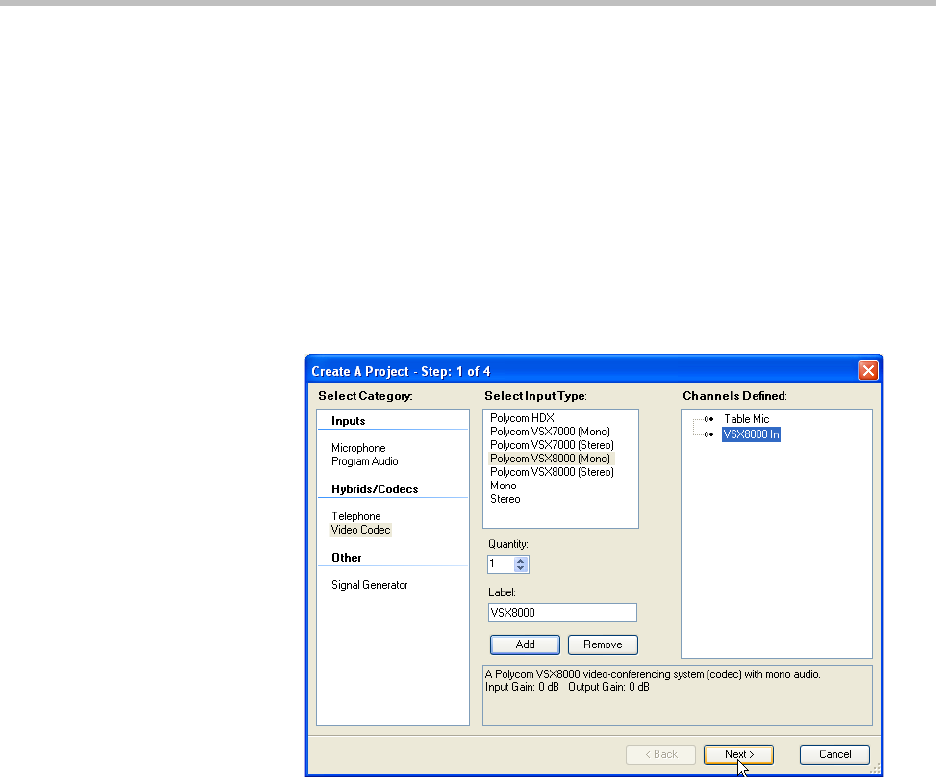

Step 1 - Select Inputs
For the first step, select one table top microphone and a VSX8000 mono video
codec.
- Design Guide 1
- C16, C12, C8, and SR12 1
