Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
9 - 22

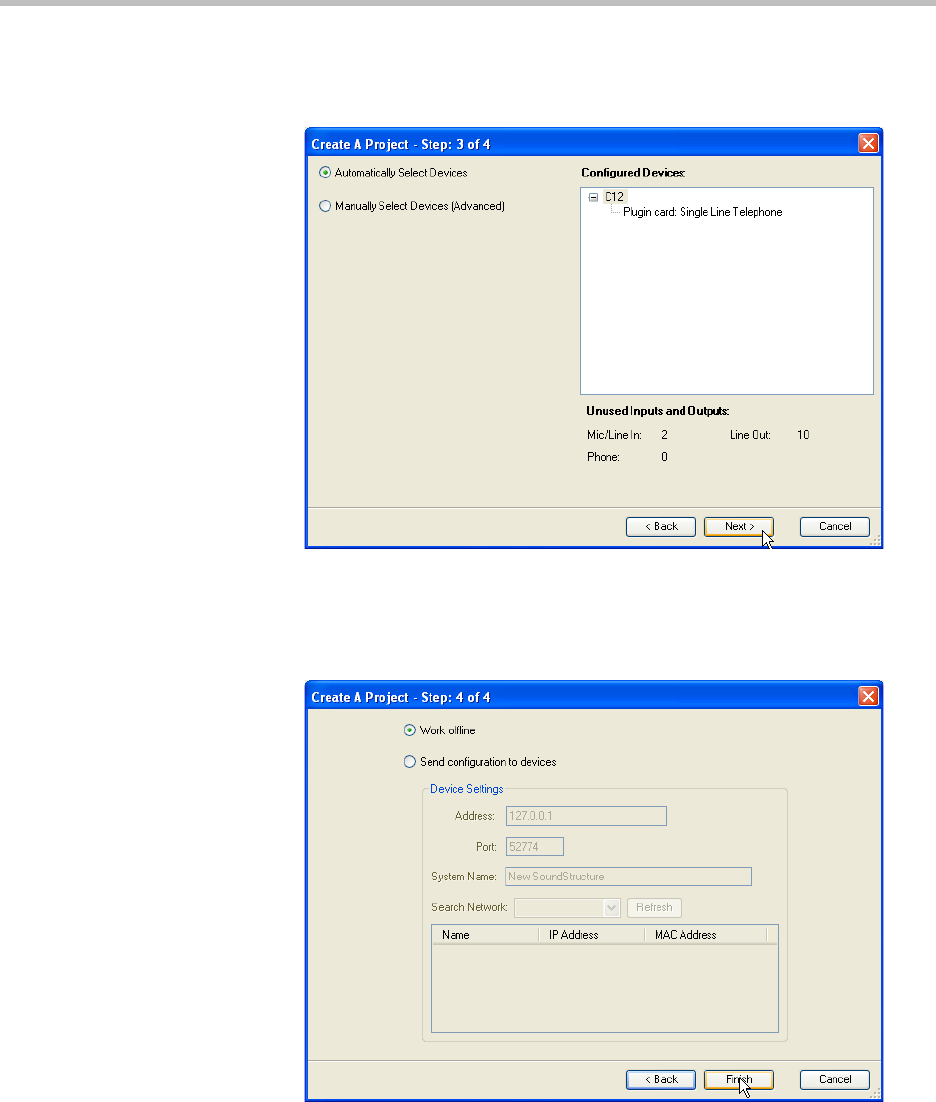

Step 3 - Select Devices
Select the equipment required to create this design. By default the SoundStruc-
ture C12 with a single line telephone card is selected.
Step 4 - Work Offline Or Online
In this step offline operation is selected to create a file for later upload into a
SoundStructure C12 and TEL1 single-line telephony card.
Matrix Settings
Once the system has been designed, click the Matrix label in the project
window to view the matrix shown in the following figure.
