Advanced Applications
9 - 31

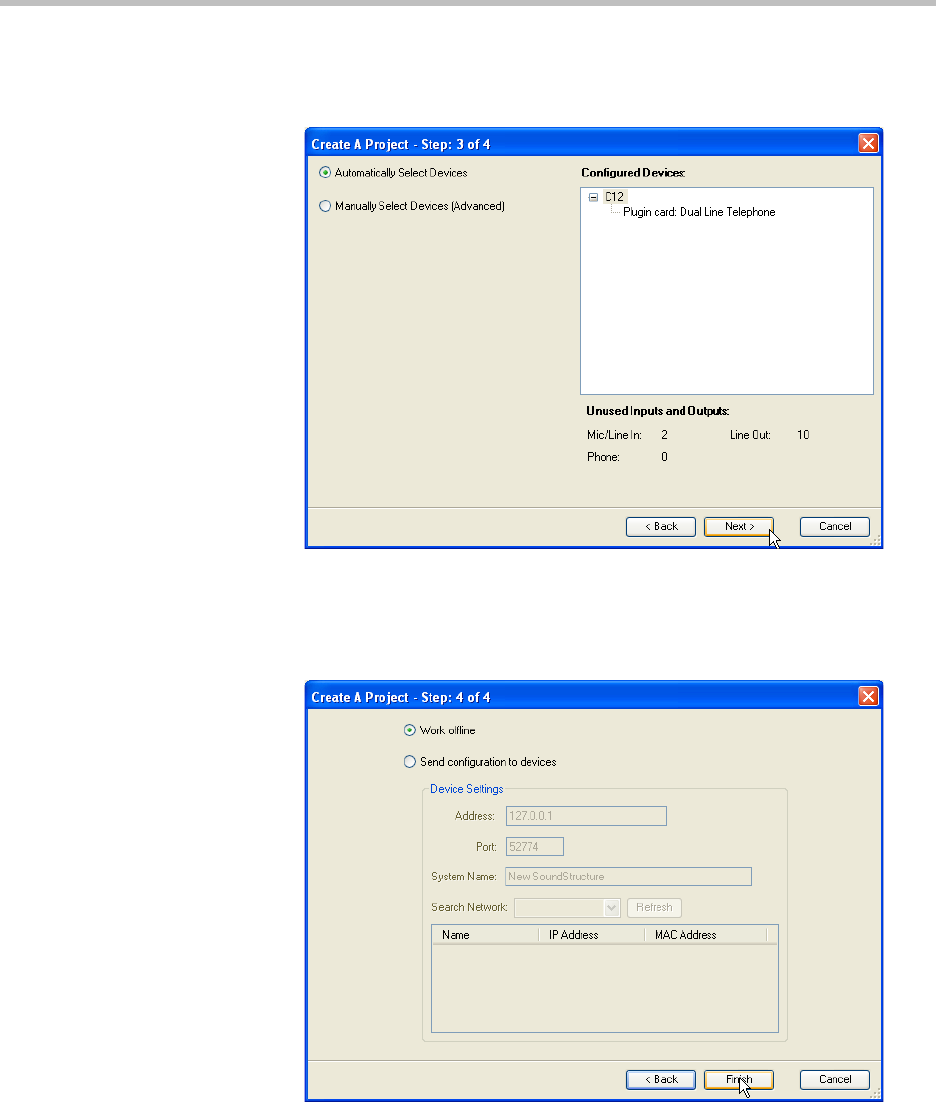

Step 3 - Select Equipment
Select the equipment required to create this design. By default the SoundStruc-
ture C12 with a dual-line telephone card is selected.
Step 4 - Work Offline or Online
In this step offline operation is selected to create a file for later upload into a
SoundStructure C12 and dual-line telephony card.
Matrix Settings
Once the system has been designed, select the Matrix entry on the project
window on the left tab to view the matrix shown in the following figure.
