Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
9 - 70
Matrix Settings

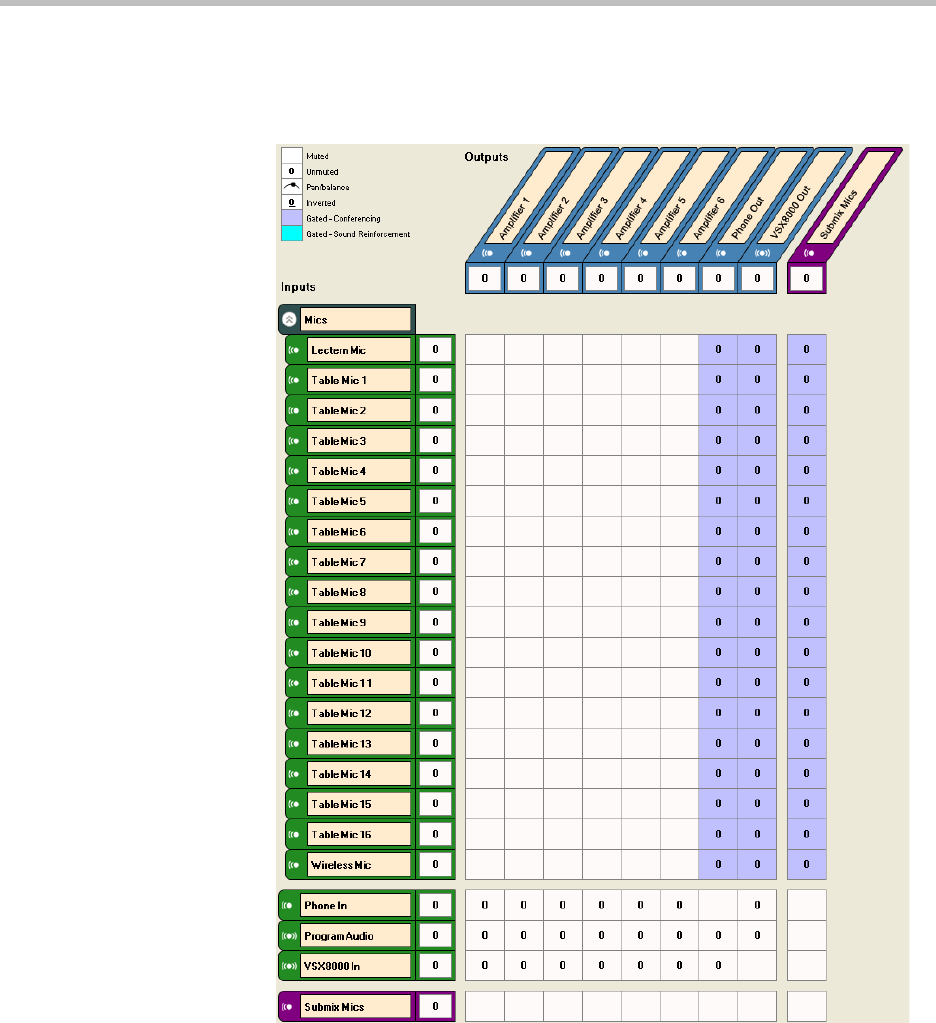

The default matrix with the desired inputs and outputs is shown in the follow-
ing figure.
- Design Guide 1
- C16, C12, C8, and SR12 1
