Chapter 1- Hardware Description
1-14

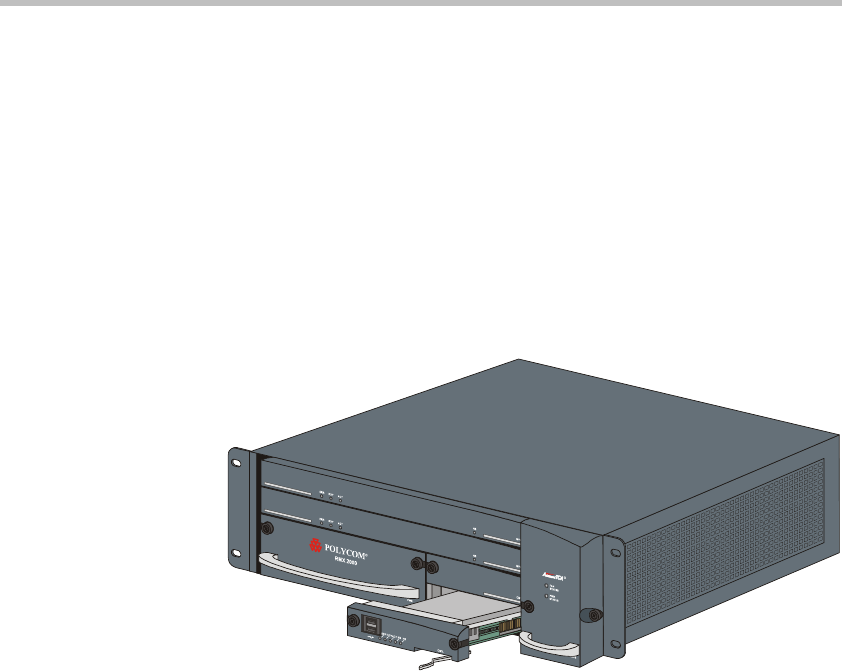

Replacing the CPU (CNTL) Module
The CPU module is the management system of the RMX 2000. Use the
following procedure to replace a CPU (CNTL) Module:
1 Ensure that power switch to the RMX 2000 is turned OFF (O).
2 Unscrew the screws on the front panel of the RMX 2000 that secure
the
CPU (CNTL) Module.
3 Use the metal ejectors to pull the
CPU (CNTL) Module out of its slot
in the Backplane.
4 Carefully slide the
CPU (CNTL) Module out through the front panel.
5 Slide in the replacement
CPU (CNTL) Module.
6 Push the
CPU (CNTL) Module firmly into the Backplane, making
sure it is properly seated in its slot.
7 Ensure that the metal ejectors are fully retracted into their housings.
8 Tighten the screws on the front panel of the RMX 2000 that secure the
Functional
CPU (CNTL) Module.
9 Turn ON the RMX 2000.
